OGASSA HORIZON
The OGASSA HORIZON represents the next evolution in aerospace, delivering enhanced endurance, connectivity, and military mission performance for challenging operational environments.
​

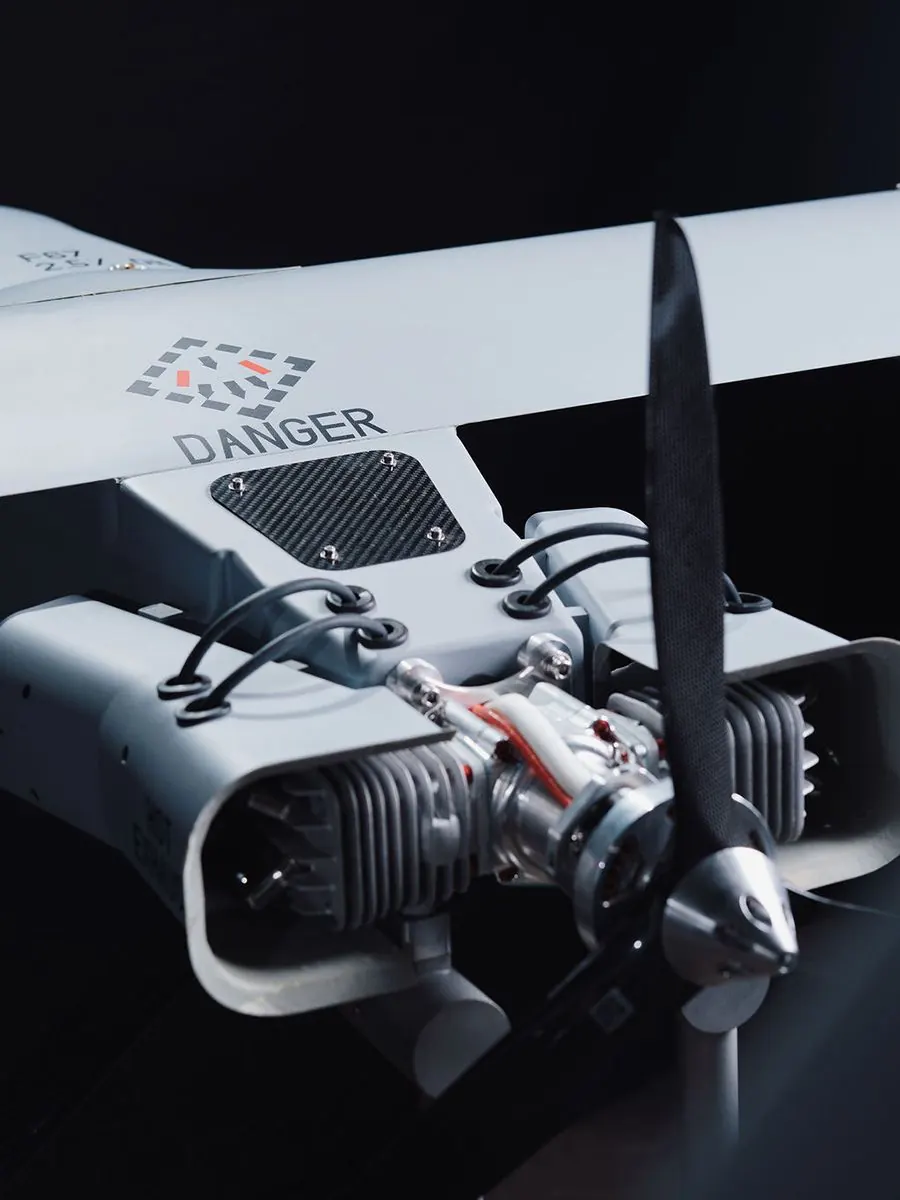

Built on the reliability and field-tested architecture of the previous OGS42 version, the OGASSA Horizon integrates a larger, high-efficiency wing that increases lift capability and aerodynamic performance. It is a military-grade proven UAS that is being used by several forces, including the Portuguese Air Force and Portuguese Navy under Squadron 991 that operates 12 units since 2019 and the Portuguese Navy with x31.
​
With over thousands of operational flight hours, the OGASSA has demonstrated proven success across a wide range of operational scenarios. The OGASSA HORIZON is a low-maintenance aircraft offering true multi-mission capability. It represents a next-generation tactical UAS engineered to operate farther, longer, and smarter.
NSN Code: 1550-26-201-9600
1400 km
Range ( Full ISR payload )
15 h
Max Endurance
45 kg
Max Takeoff Weight
5.2m
Wingspan
ELANUS
The ELANUS UAV is the latest loitering munition and fixed-wing system developed by UAVision, specifically tailored for both land and maritime operations. It delivers the reliability, advanced technology, and robustness characteristics of UAVision products within a more compact footprint. It is capable of flying to a designated area, identifying and tracking a target, and executing a precision strike through self-destruction.
The ELANUS accumulates the knowledge and expertise gathered through the years of evolution and experience on fixed-wing platforms. Its predecessors have a long history of service in international military and civilian forces, being pushed to the limit in different operational conditions and in different scenarios. The ELANUS therefore brings the reliability, technology and robustness of UAVision products, just in a smaller footprint.
50km
Range
200km/h
Dive Speed
8kg
Max Takeoff Weight
30min
Max Endurance
SPYRO GS
​The SPYRO GS is the improved version of UAVision's acclaimed Spyro that has served our clients for more than 15 years. Providing an impressive 2 hours of operation with full payload, 25Km MTOW. With its Carbon-fibre structure, this hybrid UAS was designed to withstand the most demanding weather conditions both in land and sea environments.​ We presented this new version of the Spyro at NATO REPMUS exercise in 2022, and it was an instant success.​ The Spyro GS System consists of an Air Vehicle and Ground Control Station with proven UAVision mission Software.
A military-grade C2 system in use by the Portuguese Navy and Air Force since 2016, which is also fully integrated with ship tactical systems ( RADAR, ECDIS, AIS and all available NMEA data). ​But we went further and integrated our own UGS600 electro-optical payload, a military-grade.
2h
Flight Time ( payload 2 kg )
60km
Operational Range
10 kg
Payload ( 45 min )
-10°C to 50°C
Operating Temperature
