OGASSA OGS42
The OGASSA OGS42 is the latest generation of UAVision Unmanned Air Systems. It was specially designed for long endurance maritime operations.
It has proved to be a reliable platform with hundreds of hours of testing and operations. The OGASSA can be deployed in multiple scenarios and missions. It has the capability of mounting several different types of payloads and gimbals.
The standard version of the OGASSA is equipped with high-performance electro-optical Gimbal, strong and reliable communication link using UAVision StormCOMM IP communication system which is capable of reach 100Km LOS radius on top of the sea.
Applications:
-
Border patrol and surveillance
- Maritime costal surveillance
-
Vessel tracking and identification
-
Search and rescue
-
Pipeline monitoring
-
Remote sensing
-
Illegal fishing surveillance
-
Illegal emigration surveillance
Avionics Specifications:
-
UAVision Autopilot AP950
-
PMU - 400: Power Management Unit
-
GEN - 300: In Line Generator 300W
-
AEMCS - 100: Engine Control Unit
-
SDL - 400: Safety Datalink for External Pilot (868-433 MHz)
-
StormCOMM IP Datalink 2.3GHz to 2.7GHz
-
Transponder Mode C and Mode S
-
AIS and EPIRB Receivers system
-
SRV - 80: CAN BUS Servos

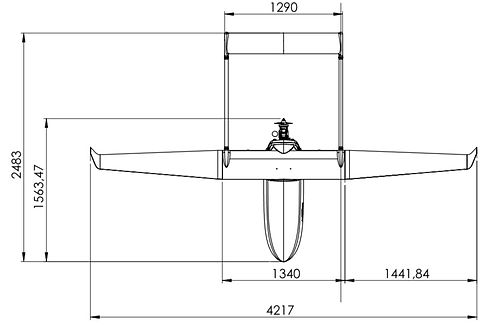

Dimensions:
-
Length: 2.5 m
-
Wingspan: 4.2 m
-
Height: 1.1 m
Performance:
-
Flight range: 100 km
-
Endurance: Up to 10 hours
-
Service ceiling: 8000 feet
-
Cruise speed: 51 knots
-
Max speed: 70 Knots
-
Stall speed @ 38 Kg: 42 knots
-
Propulsion: 70cc Combustion engine
-
Fuel Tank: 11 Litre
-
Fuel Type: Gasoline
-
Electrical power: On-board generator
-
Two redundant batteries
-
Wind limit: 35 knots
-
Take-off distance: 150 m
-
Recovery: Runway
-
Maximum take-off weight: 38 kg
-
Maximum payload weight: 5 kg
GIMBAL ON OGASSA
OGASSA FIRE DETECTION MISSION
OGASSA 80 KM ON SEA SURVEILLANCE
